Discuss packaging requirements for your brand
Confirm feasible customization for the selected platform
Confirm sample configuration, quantity and availability
Confirm schedule and delivery terms for your order
| Category | Item | Specification |
| System parameters | Google Core | • Amlogic S905Y4 QuadA35 • 16000 DMIPS • 32K I/D cache • 512KB L2cache • ARM G31 MP2 • OpenGL ES 3.2 Graphics engine |
| AOSP Core | • MTK Decode 4K • CPU: Contex A73 4-core • GPU: Mali-G52 MC1 • Cache: 2GB DDR4 • ROM: 32GB EMMC |
|
| Operating System | Android 13.0 | |

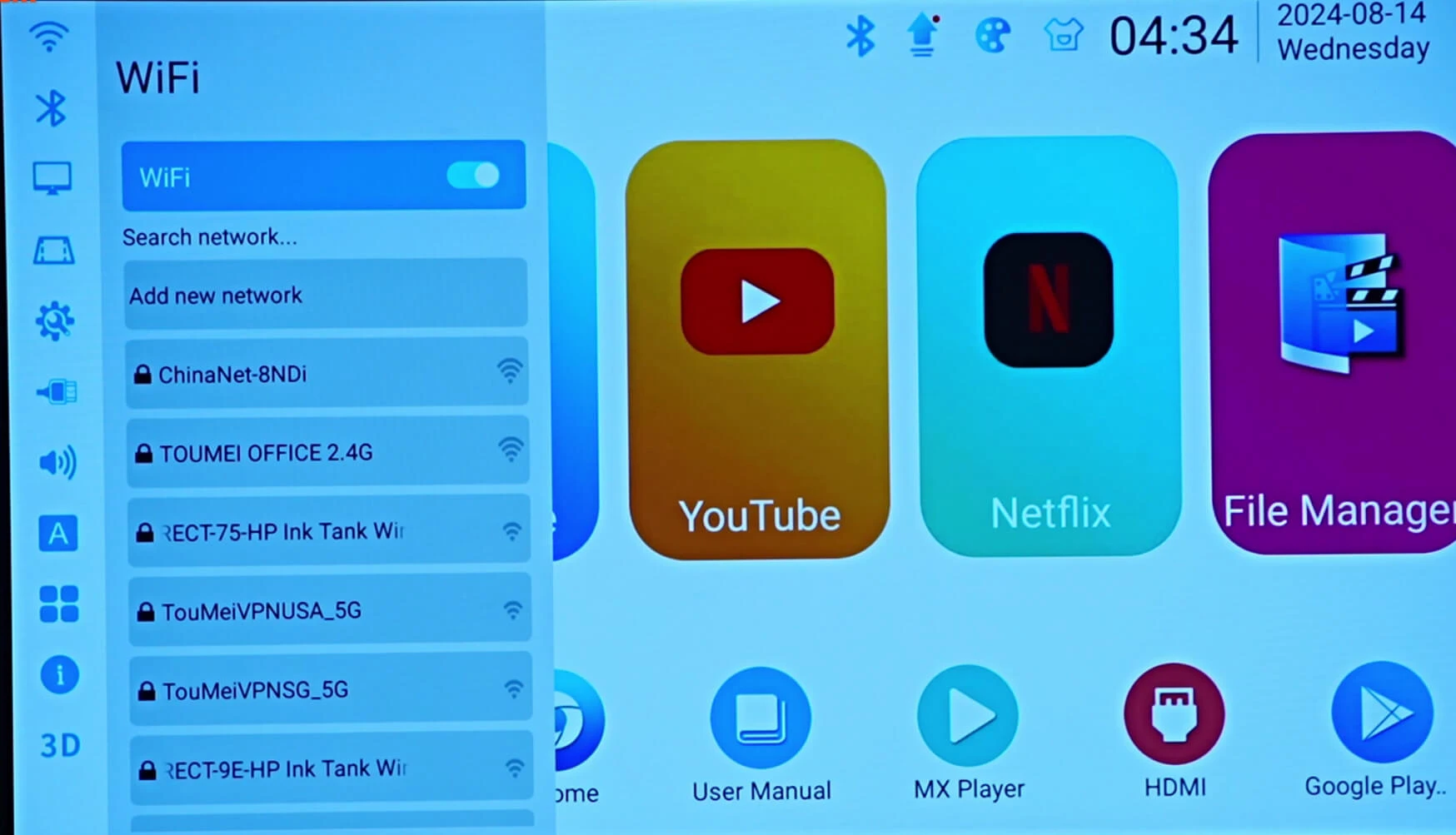

| Wi-Fi | Dual Band 2.4GHz & 5GHz | |

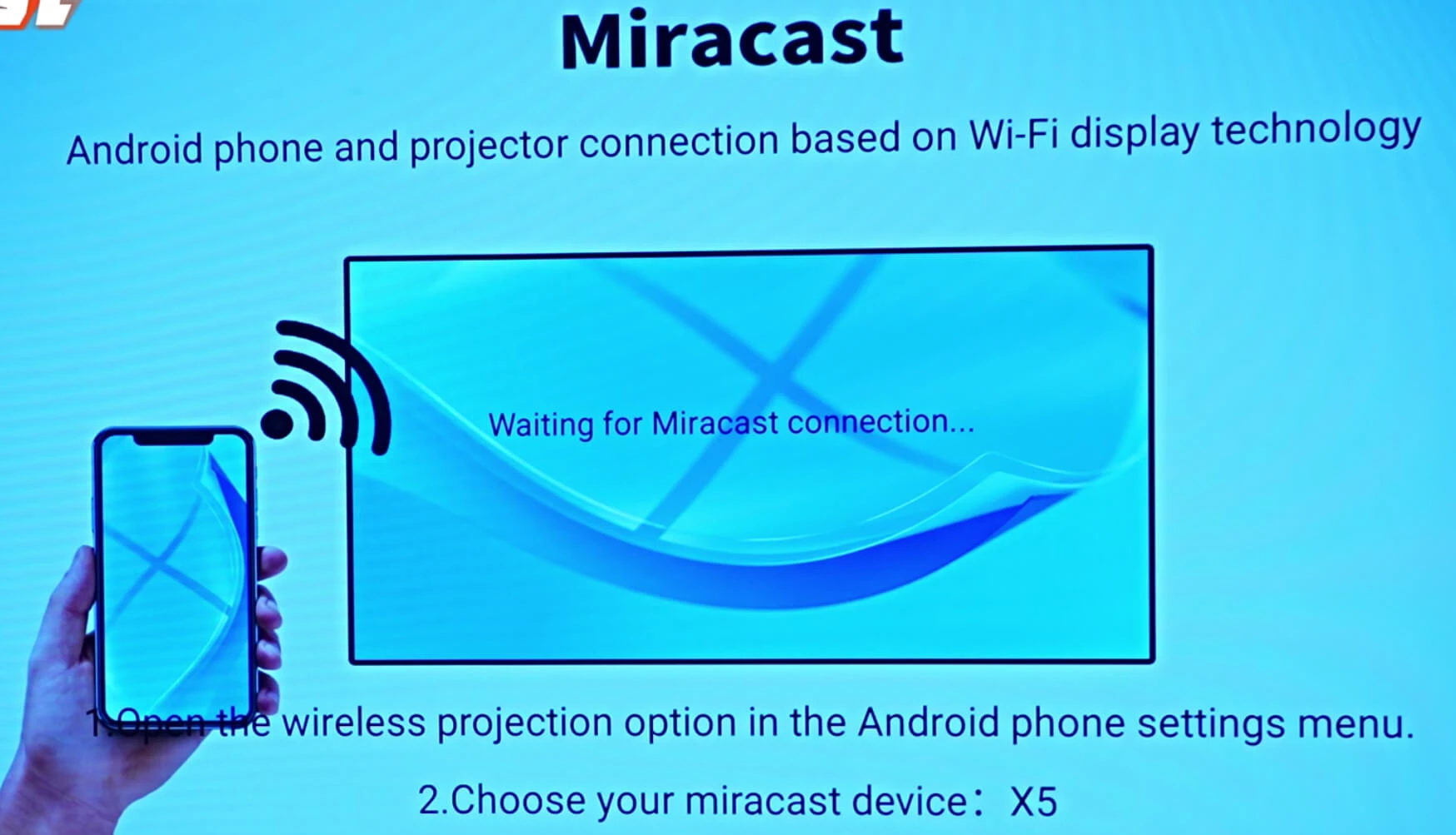

| Wireless same screen | Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen | |
| Wired same screen | Support data cable(wired) same screen technology for iPhone and Android mobile phone | |
| MEMC | Support 1080P 60HZ | |
| Optical parameters | Projector technology | Texas Instruments Ti DLP technology |
| Display chip | Ti 0.47 inch DMD (with off-axis 100% optical machine) | |
| Type of light source | Osram RGB-LED light | |
| Projection brightness | 1600ANSI (International standard) | |
| Physical resolution | 1920*1080P | |
| Image quality uniformity | >98% | |
| Contrast FOFO | 1000:1 | |

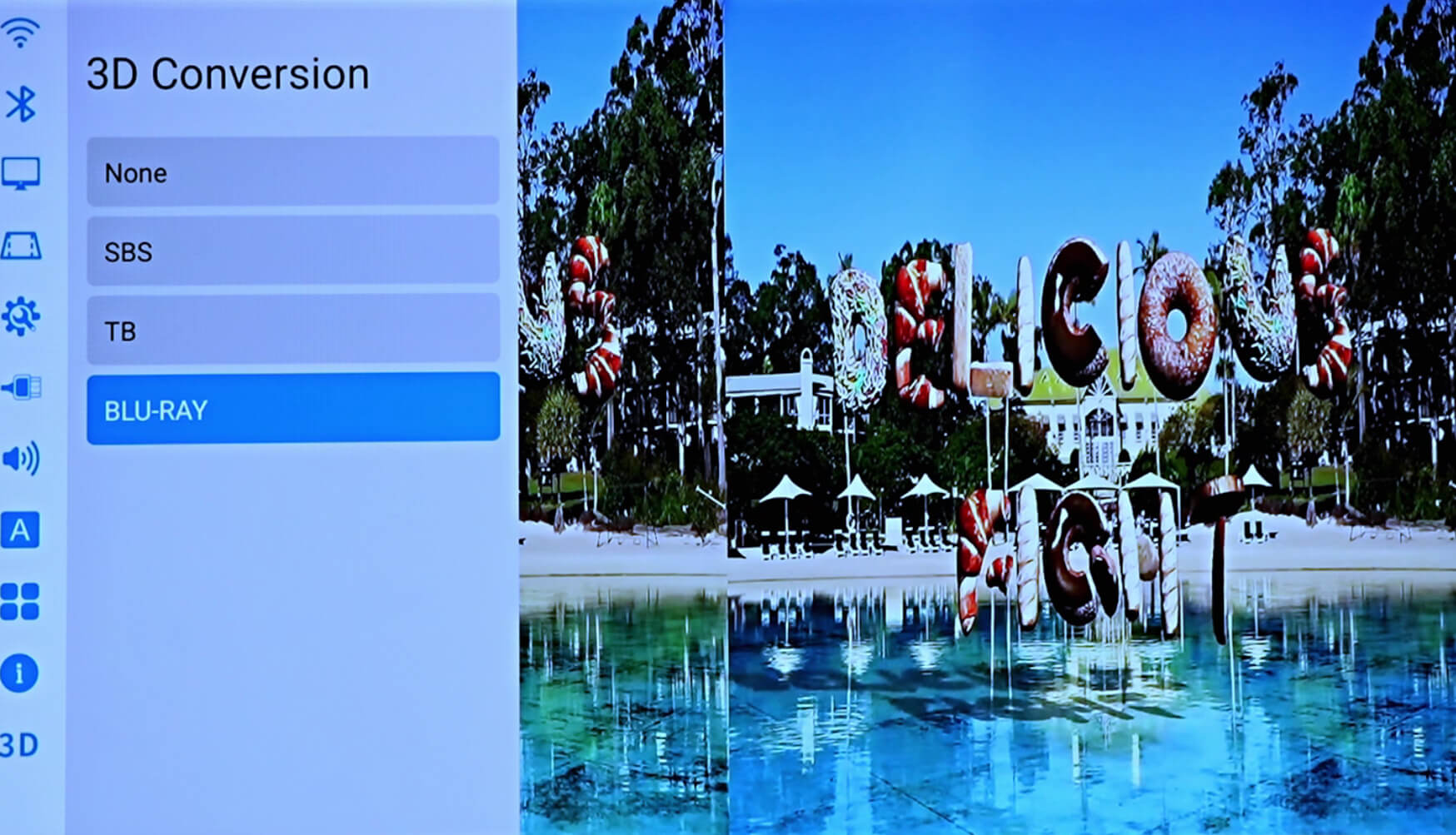

| 3D technology | Support 3D function DLP-LINK shutter 3D glasses | |
| Projection parameter | Throw ratio | 1.2:1 |
| Projection frame | 38″ @ 1 meter | |
| Projection size calculation method | Projection ratio (1.2) * projection size (100 inches) * 16:9 screen length (0.0254*0.8716) | |
| Keystone correction | Automatic trapezoidal correction ±30°, support manual side casting function | |
| Projection method | Support front projection, rear projection, and hanging projection | |
| Focusing method | TOF laser focus | |
| Built-in speaker | 20W*2 (Super bass surround sound) | |
| Interface parameters | Headphone Output | Audio output, 3.5mm connector (headphones or speakers can be connected) |
| USB | USB HOST 2.0*2 | |
| HDMI | Support HDMI 2.0 input | |
| Ethernet input | Supports Network interface | |
| S/PDIF | Supports 5.1 channel connection | |
| Electrical Specifications | Total Power Consumption | 105W |
| Power input | Power Adapter 19V 6.32A DC IN | |
| Packaging parameters | Product Size | 211*193*164mm |
| Package Size | 285*235*235 mm | |
| Net Weight | 2.38Kg | |
| Package Weight(1set) | 3.48Kg | |
| Package Weight(4sets/box) | 14.78Kg | |
| Carton Size(4sets/box) | 60*26*50.5cm | |
| Packing list | Contents | X6, Remote control, power adapter, power cord, Product instruction card |

Start with the projector model, destination market and customization requirements. Branding an existing platform and developing new hardware involve different reviews. Confirm the hardware, software, packaging and licensing scope in the project specification before approving samples or production.

Request the MOQ, sample schedule, production lead time and compliance documents for your model, destination market and customization scope. Confirm sample availability separately from a production order. New tooling or software development requires its own feasibility review and schedule.
Start with the projector model, destination market, and experience you want to offer. Evaluation samples, branding or packaging changes on an existing platform, and projects involving new tooling or development should be scoped separately. Use the steps below to define the configuration and order requirements.
Identify the intended use, target image size, brightness requirements, and power setup. Compare the specifications for the exact model and system version. Include your expected quantity and requested changes in the inquiry, then request a configuration sheet covering the projector, power supply, accessories, packaging, and any options under consideration.
Specify the operating system, interface languages, connectivity, and applications your project needs. AOSP and Google TV configurations should be reviewed separately. Confirm app support, licensed features, and availability for the destination market rather than assuming that every system offers the same functions. Request compliance documentation that matches the selected configuration and discuss whether proposed changes require additional review.
Agree on the sample configuration and the checks it needs to pass. Evaluate image performance, setup, connectivity, software behavior, and the intended use environment. Record any requested changes and confirm which sample will serve as the reference for production. Sample availability, preparation time, pricing, and shipping arrangements should be established for that request.
Before placing a production order, confirm the configuration sheet, artwork, quantities, inspection criteria, and payment milestones. Separate development and sample approvals from the production schedule. Agree on how component or configuration changes will be handled, and request the relevant inspection records. Confirm shipping terms, delivery responsibilities, required documents, and customs arrangements for the destination.
Review the written warranty terms and support arrangements for the chosen model and market. Clarify the claim process, return or replacement responsibilities, and available repair or spare-parts options. Confirm any firmware-update or software-support requirements for the selected system. Keep the approved configuration and order records available so later support requests can be matched to the product supplied.
OEM generally means manufacturing to a buyer’s design or specifications. ODM starts with a manufacturer-developed design or platform. A project involving branding or packaging on an existing projector has a different scope from one requiring new tooling, hardware, or software development. Share your target model, market, and requested changes so the project scope, development work, and deliverables can be defined before you place an order.
Compliance documentation must match the projector model, configuration, and destination market. When making an inquiry, specify where the product will be sold and request the relevant reports, declarations, or certificates for that configuration. Check the model identifiers and document scope before relying on them. Changes to hardware, wireless features, the power supply, or branding should be included in the review of your project’s documentation requirements.
Specify whether you need an evaluation sample, branding or packaging customization on an existing platform, or a project involving new tooling or development. The minimum quantity and any setup or development charges need to be confirmed for that scope. Include the model, requested changes, and expected order quantity in your inquiry. Sample quantities and prices should be confirmed separately from the terms for a production order.
Timing depends on the selected configuration, order quantity, customization, component availability, and approval requirements. For samples, request a preparation and dispatch estimate. For branding or packaging orders, confirm the schedule after artwork and specifications are finalized. Development projects need separate milestones for design, samples, testing, and production. Share your target delivery date and destination, and ask for production and shipping estimates to be listed separately.
Shipping and customs arrangements need to be confirmed for each order and destination. Include the delivery country, delivery point, and preferred shipping terms in your inquiry. Before shipment, agree on who arranges transportation, insurance, export documentation, import clearance, and applicable duties or taxes. If you need door-to-door delivery or specific customs documents, request confirmation that those arrangements are available for your shipment.
Describe the changes you need for the selected projector platform. Branding and packaging requests may include logo artwork, colors, packaging layouts, and manual languages. Changes to the enclosure, optics, electronics, battery, or software require a separate feasibility review. Confirm supported options, development work, sample requirements, and any setup charges for the exact configuration. Google TV, streaming apps, and other licensed features require configuration- and market-specific confirmation.
Request the payment terms for your specific sample, customization, or development order. The quotation or pro forma invoice should identify the accepted payment method, currency, payment milestones, and any separate tooling or development charges. For production orders, confirm when payments are due and how they relate to approvals, inspection, and shipment. Terms from a previous order should be reconfirmed if the project scope changes.
Request the written warranty and support terms for the model, destination market, and order you are evaluating. Review the coverage period, exclusions, claim procedure, and responsibilities for returns or replacement shipments. Confirm the diagnostic, repair, spare-parts, and firmware support available for the selected configuration. Local repair arrangements and software updates should be checked separately rather than assumed to apply to every model or market.
Begin with an agreed configuration sheet and an approved sample. Define the inspection items, acceptance criteria, and how the approved sample will be used as a production reference. Request the relevant production and final-inspection records for your order. If third-party inspection is required, confirm the scope, timing, access arrangements, and cost before production. Any proposed component or configuration change should be reviewed against the agreed specification.
