Tailored packaging tomatch your brand
Full customization on hardware, software & branding
Evaluate quality withlow MOQ sample
Competitive price with stable lead time
| Category | Item | Specification |
| System parameters | Google Core | • Amlogic S905Y4 QuadA35 • 16000 DMIPS • 32K I/D cache • 512KB L2cache • ARM G31 MP2 • OpenGL ES 3.2 Graphics engine |
| AOSP Core | • MTK Decode 4K • CPU: Contex A73 4-core • GPU: Mali-G52 MC1 • Cache: 2GB DDR4 • ROM: 32GB EMMC |
|
| Wi-Fi | Dual Band 2.4GHz & 5GHz | |
| Wireless same screen | Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen | |
| Wired same screen | Support data cable(wired) same screen technology for iPhone and Android mobile phone | |

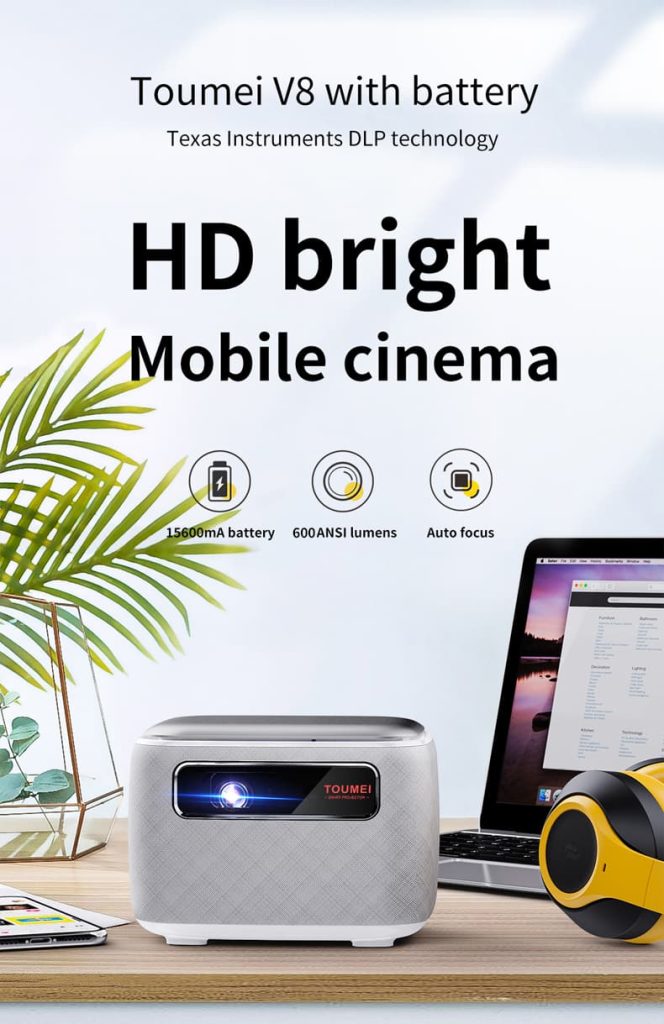

| Optical parameters | Projector technology | Texas Instruments Ti DLP technology |
| Display chip | Ti 0.45 inch WXGA DMD (with off-axis 100% optical machine) | |
| Type of light source | Osram RGB-LED light | |
| Projection brightness | 600ANSI (International standard) | |
| Physical resolution | 1280*800P | |
| Image quality uniformity | >90% | |
| Contrast FOFO | 1000:1 | |
| 3D technology | Support 3D function DLP-LINK shutter 3D glasses | |
| Projection parameter | Throw ratio | 1.2:1 |

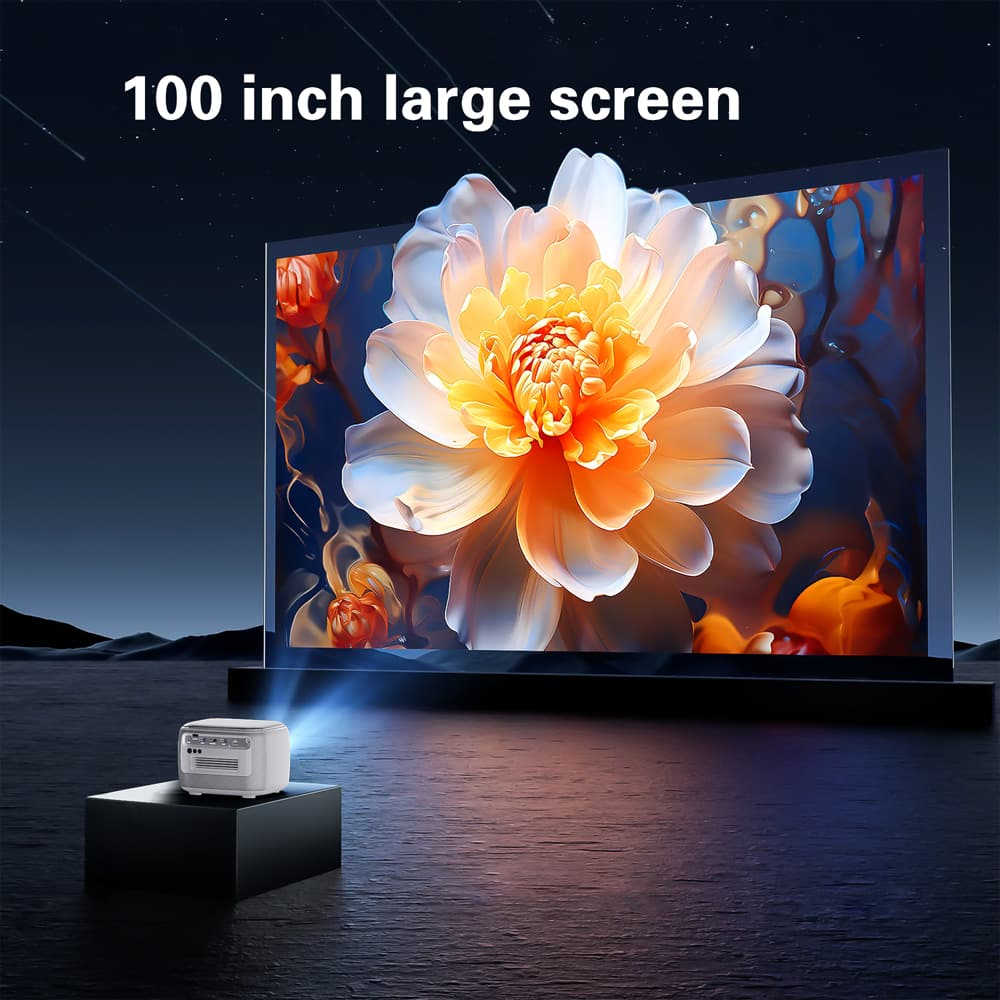

| Projection frame | 39″ @ 1 meter | |
| Projection size calculation method | Projection ratio (1.2) * projection size (100 inches) * 16:9 screen length (0.0254*0.8716) | |
| Keystone correction | Automatic up and down key stone correction ±40°, support manual side projection function | |
| Projection method | Support front projection, rear projection, and hanging projection | |
| Focusing method | TOF laser focus | |
| Built-in speaker | 10W*2 (Super bass surround sound) | |
| Interface parameters | Headphone Output | Audio output, 3.5mm connector (headphones or speakers can be connected) |
| USB | USB HOST 2.0*2 | |
| HDMI | Support HDMI 2.0 input | |
| Ethernet input | Supports Network interface | |
| Extended Memory | Support U disk and SSD solid state drive | |
| Electrical Specifications | Total Power Consumption | 65W |
| Built-in battery | Built-in 15600mAh lithium battery 57.72Wh | |
| Power input | Power Adapter 19V/3.42A DC In | |
| Battery life | 100 minutes in highlight mode, 600ANSI. 120 minutes in standard mode, 450ANSI. 150 minutes in power saving mode, 300ANSI | |
| Charging time | Fully charged in about 4 hours (can be used while charging) | |

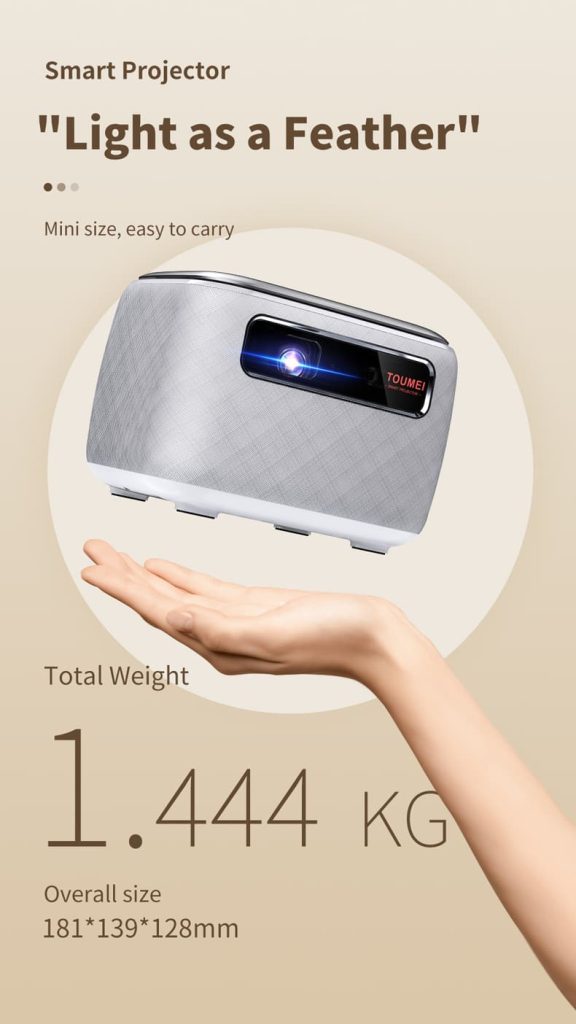

| Packaging parameters | Product Size | 180*140*128mm |
| Package Size | 233*244*157mm | |
| Net Weight | 1.443Kg | |
| Package Weight(1set) | 2.52Kg | |
| Package Weight(6sets/box) | 16.65Kg | |
| Carton Size(6sets/box) | 50*25.5*49.5CM | |
| Packing list | Contents | V8, Remote control, power adapter, power cord, Product instruction card |
OEM Contract Manufacturing: We provide end-to-end services ranging from hardware production to brand licensing based on customer requirements. Customers can specify product parameters (such as resolution, brightness, system functions, etc.), and we are responsible for design, manufacturing, and quality control. ODM Solution Output: We support customers in choosing existing mature solutions for rapid market launch, covering finished smart projectors, accessories, and innovative products (such as projection devices with integrated LED lighting functions). We own complete intellectual property rights, and customers can customize the appearance and brand logo.
Flexible MOQ: Supports minimum order quantity of 100 units, meeting the demands of start-up brands, online sales, and personalized customization, and reducing the inventory pressure on customers. Fast Response Cycle: Relying on the Integrated Product Development (IPD) model, the project from approval to mass production is shortened by 30%, meeting the requirements of rapid market replacement.
Smart Projection Series: Equipped with mainstream configurations such as 720P/1080P/4K resolutions, 200-1500+ lumens high brightness, auto focus, and keystone image correction.
Independently developed optical machine capabilities: Independently developed optical machines account for over 70%, supporting DLP/LCD technologies, and the picture quality is industry-leading.
Smart system compatibility: Equipped with Android / Google TV, compatible with mainstream platforms such as Netflix and YouTube, and supports multi-language user interfaces customization.
Co-branding Operation: Offer comprehensive marketing solutions including overseas crowdfunding and social media marketing.
Customers submit customized requirements (functions, appearance, certifications, etc.), and we will provide solution quotations.
Sample development is completed within 15-30 working days, and remote video sample acceptance is supported.
Production is finished within 30-45 days after confirming the order.
Provide 1-year warranty, technical team response, and firmware OTA upgrade services.
OEM (Original Equipment Manufacturing): We manufacture projectors based on your brand design and technical specifications. The products fully comply with your customized requirements (such as appearance, packaging, LOGO, etc.). ODM (Original Design Manufacturing): We offer a full-process service from product design, research and development to production. You can choose the existing solutions or propose functional requirements (such as resolution, brightness, system compatibility, etc.). We conduct customized development. Comparison of advantages: OEM is suitable for customers with mature designs, while ODM is suitable for purchasers who need differentiated products.
EU (CE Certification): Compliant with the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC), ensuring electrical safety and anti-interference capability. North America (FCC Certification): Wireless models require FCC-ID certification, wired models require FCC-SDOC certification; models containing laser modules require additional FDA certification. Environmental protection standards: The entire series complies with the Restriction of Hazardous Substances Directive (RoHS). Note: We provide support for documents certificating and can assist in completing compliance testing for target markets.
Standard OEM Products: MOQ is 1 unit. It’s suitable for sample testing or small batch trial order selling. Customized ODM Products: MOQ is adjusted according to the complexity of design (usually ≥ 500 units). The mold-opening cost can be shared among large orders. Flexible Policy: Long-term cooperation customers can apply for tiered MOQ discounts.
OEM Orders: Delivery within 15-30 days after design confirmation (one day delivery is supported when inventory is sufficient). ODM Development: Approximately 55 days after scheme confirmation (including mold opening, sample production and testing), with a separate calculation for the mass production time. Urgent Order Service: Urgent orders can shorten the production cycle by 30% and an expedited fee needs to be paid.
Logistics: Offer various shipping terms such as EXW/FOB/DDP, cooperate with international logistics providers like DHL and FedEx, and support dropshipping. Customs Clearance: Provide complete packing lists, invoices and COO certificates. In the ASEAN region, FORM E origin preferential treatment can be applied for. Value-added Services: Purchase transportation insurance to cover damage claims.
Module Customization Hardware Resolution (720P to 4K), Brightness (100 – 4500 lumens), Power Specifications (US/European standards, etc.), Battery Capacity Software Android System Version, Multi-language Interface, Pre-installed APKs (such as Netflix/YouTube) Appearance Shell Material/Color, Laser Engraving of Brand LOGO, Gift Packaging Design Accessories Custom Remote Control, Anti-glare Screen, Portable Bag, Multi-language User Manuals
Sample Order: 100% Prepayment (PayPal/Western Union) Bulk Order: 30% Deposit + T/T Balance Payment, L/C (≥ 500 units) Credit Customer: Credit period supported (Qualifications need to be reviewed)
Warranty Period: 1 year for the entire machine (LED/Laser technology lifespan ≥ 25,000 hours) After-sales Service: Remote fault diagnosis, global direct delivery of spare parts, local service provider connection (North America/Europe/Southeast Asia) Training: Provide product manual, installation video and API interface documentation (for system customization customers)
Quality Control System: ISO9001-certified factory, full-process automated inspection (including aging test, optical calibration) Transparency Tracking: Provide photo/video updates during production stage, support third-party inspection (SGS/BV, etc.)
Tell us your target market, quantity, and customization needs, and our OEM/ODM team will recommend the right projector platform with a tailored quote.
Contact us for quotes and specs
we will give you a quote within 24 hours
